Splash

A special ad format that displays when the app performs a warm start or cold start.

Overview

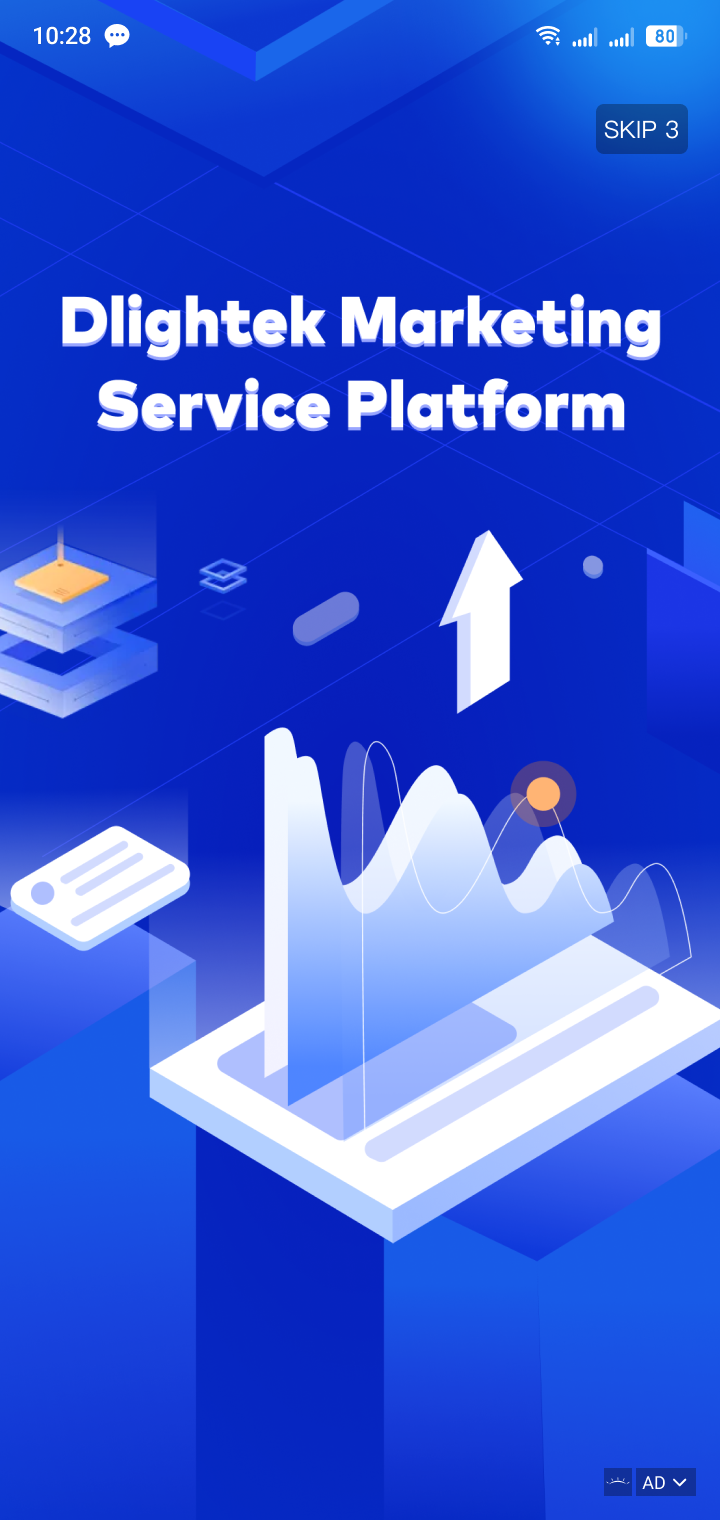

An ad format that appears at natural endpoints and transitions. Refer to the Hisavana SSP ad source for the supported size 9:20. Sample preview:

9:20

We recommend downloading and trying the Mediation Demo to get a more intuitive and in-depth understanding of the SDK's features and usage.

Build the Component

Add TSplashView in the XML layout.

Reminder: For Hisavana SSP SPLASH_VIEW mode and Mintegral splash, you must add the View in XML. For all other cases, adding the View at show time is sufficient.

<androidx.constraintlayout.widget.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <com.hisavana.mediation.ad.TSplashView
        android:id="@+id/splash_ad"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />
</androidx.constraintlayout.widget.ConstraintLayout>

Load Ad

Set the required parameters and listener callbacks. Pay close attention to which ad unit types each callback applies to, to avoid integration errors.

Strongly recommended:

1. Avoid making a new ad request using the same ad object while an ad is being displayed. If you need to make a new request, create a new ad object. Otherwise the request will be invalid and an error will be returned via the onError callback.
2. Some ad sources may occasionally skip the onAdShowError callback. Apps that rely on this callback for navigation logic may get stuck on the splash screen. To avoid this, add a timeout mechanism on the splash page. For example, navigate to the next screen automatically if the splash ad has not displayed within approximately 3 seconds.

// Bind the splash ad view
TSplashView tSplashView = findViewById(R.id.splash_ad);
// "splash_id" is the splash ad unit ID
TSplashAd tSplashAd = new TSplashAd(this, "splash_id");
// Build and set the ad request body
tSplashAd.setRequestBody(
                new TAdRequestBody.AdRequestBodyBuild()
                        .setAdListener(new TAdAlliance())
                        .build());
// Listen for skip actions
tSplashAd.setOnSkipListener(new TOnSkipListener());
// Load the ad and return the optimal ad within the configured wait time
tSplashAd.loadAd();

// Example: timeout mechanism
new Handler(Looper.getMainLooper()).postDelayed(new Runnable() {
    @Override
    public void run() {
        // Execute navigation logic
    }
}, 3000);

// Splash skip action listener
private class TOnSkipListener implements OnSkipListener {
    @Override
    public void onClick() {
        // Close the current page
        finish();
    }
    @Override
    public void onTimeReach() {
        // Countdown ended
    }
}

// Ad listener — callbacks for load, show, click, error, and close events
private static class TAdAlliance extends TAdListener {

    // Load callback (applicable to: all ad units)
    @Override
    public void onLoad() {
        // Ad loaded callback
    }

    // Error callback (applicable to: all ad units)
    @Override
    public void onError(TAdErrorCode errorCode) {
        // Ad failed callback
    }

    // Show callback (applicable to: Splash, Interstitial, Banner, Reward)
    @Override
    public void onShow(int source) {
        // Ad show callback
    }

    // Click callback (applicable to: Splash, Interstitial, Banner, Reward)
    @Override
    public void onClicked(int source) {
        // Ad click callback
    }

    // Close callback (applicable to: Splash, Interstitial, Banner, Reward)
    @Override
    public void onClosed(int source) {
        // Ad close callback
    }

    // Show error callback (applicable to: all ad units)
    @Override
    public void onShowError(TAdErrorCode errorCode) {
        // Ad show failed callback
    }
}

Reminder: source indicates the ad network. Refer to the Ad Source Correlation Table. For example, if the filled ad is from Pangle, then source = 6.

Show Ad

Display the splash ad.

// Show the splash ad
tSplashAd.showAd(tSplashView);

/**
 * Optional
 * For apps that need to track ad scene impressions, set the scene value here.
 * The first parameter is a custom scene name; the second is the ad count.
 */
String sceneToken = tSplashAd.enterScene("splash_scene_name", 1);
tSplashAd.showAd(tSplashView, sceneToken);

/**
 * Optional
 * Allows the app to pass a logo and app name by adding a sub-layout
 * (applicable to: Hisavana SSP SPLASH_VIEW mode, Mintegral).
 * The SDK renders the sub-layout to display media logo info at the bottom.
 * The bottom area occupies 20% of the screen height.
 */
View logoLayout = LayoutInflater.from(this).inflate(R.layout.splash_logo_layout, null, false);
tSplashAd.showAd(tSplashView, logoLayout);

Preview:

Destroy Ad

Release ad resources promptly to prevent memory leaks.

// Destroy the ad object when leaving the ad scene.
@Override
protected void onDestroy() {
    super.onDestroy();
    if (tSplashAd != null) {
        tSplashAd.destroy();
        tSplashAd = null;
    }
}

Other APIs

API	Description
tSplashAd.hasAd()	Whether a ready ad is available
tSplashAd.resume()	Call in the lifecycle method
tSplashAd.pause()	Call in the lifecycle method

Reminder: After integrating Mintegral, when the system calls onResume or onPause, the app must actively call the two lifecycle methods above to reduce Mintegral error counts.
